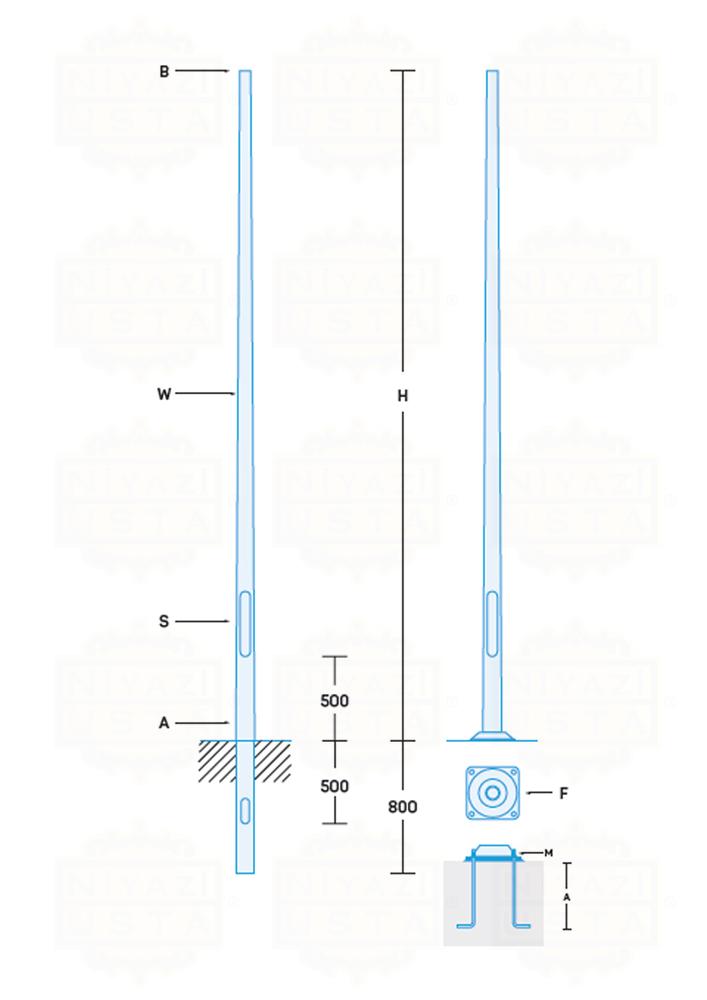

| Product Code | Pole Height | Base Diameter | Spigot Diameter | Wall Thickness | Access Door | Base Plate and Thickness |
| H | A | B | W | S | F | |
| ALC100C.400 | 4m | 100mm | 60mm - 76mm | 3mm | 250mm X 75mm | 260mm X 260mm X 12mm |
| ALC100C.500 | 5m | 100mm | 60mm - 76mm | 3mm | 250mm X 75mm | 260mm X 260mm X 12mm |
| ALC100C.600 | 6m | 100mm | 60mm - 76mm | 3mm | 250mm X 75mm | 260mm X 260mm X 12mm |
| Pole Height | Anchor | Bolt |
| A | M | |
| 4m | 500mm | M12 |
| 5m | 600mm | M14 |
| 6m | 700mm | M16 |
