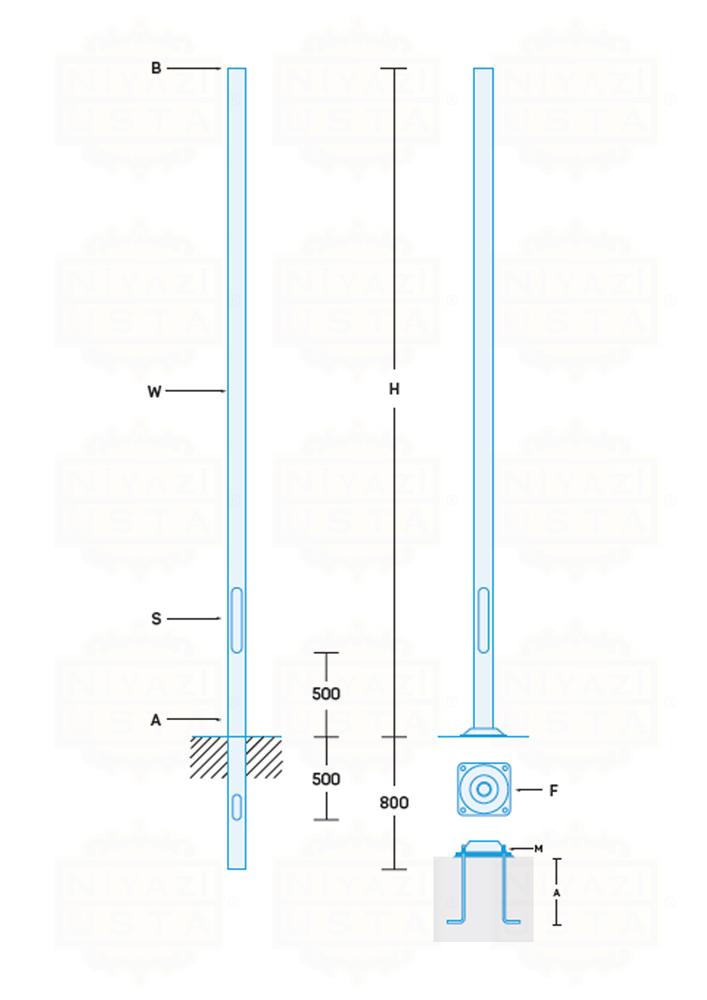

| Product Code | Pole Height | Base Diameter | Spigot Diameter | Wall Thickness | Access Door | Base Plate and Thickness |
| H | A | B | W | S | F | |
| ALC114S.400 | 4m | 114mm | 114mm | 3,5mm | 250mm X 85mm | 260mm X 260mm X 12mm |
| ALC114S.500 | 5m | 114mm | 114mm | 3,5mm | 250mm X 85mm | 280mm X 280mm X 14mm |
| ALC114S.600 | 6m | 114mm | 114mm | 3,5mm | 250mm X 85mm | 300mm X 300mm X 16mm |
| Pole Height | Anchor | Bolt |
| A | M | |
| 4m | 500mm | M12 |
| 5m | 600mm | M14 |
| 6m | 700mm | M16 |
